OEM controller replacement kit for the original JackRabbit OG (version 1.0). The kit replaces the motor controller together with the matching throttle and wiring, so the new controller, throttle, and connectors all work together rather than mixing old and new parts. It's the fix for a failed or water-damaged controller, a bike that powers on but won't drive, or a throttle and battery display that have stopped responding.
Compatible with:
- JackRabbit OG 1.0
OG 1.0 only. Not compatible with the OG 1.1, OG2, OG2 Pro, XG, XG Pro, or MG series, which use different controllers. Not sure which OG version you have? Our service team can identify it for you.

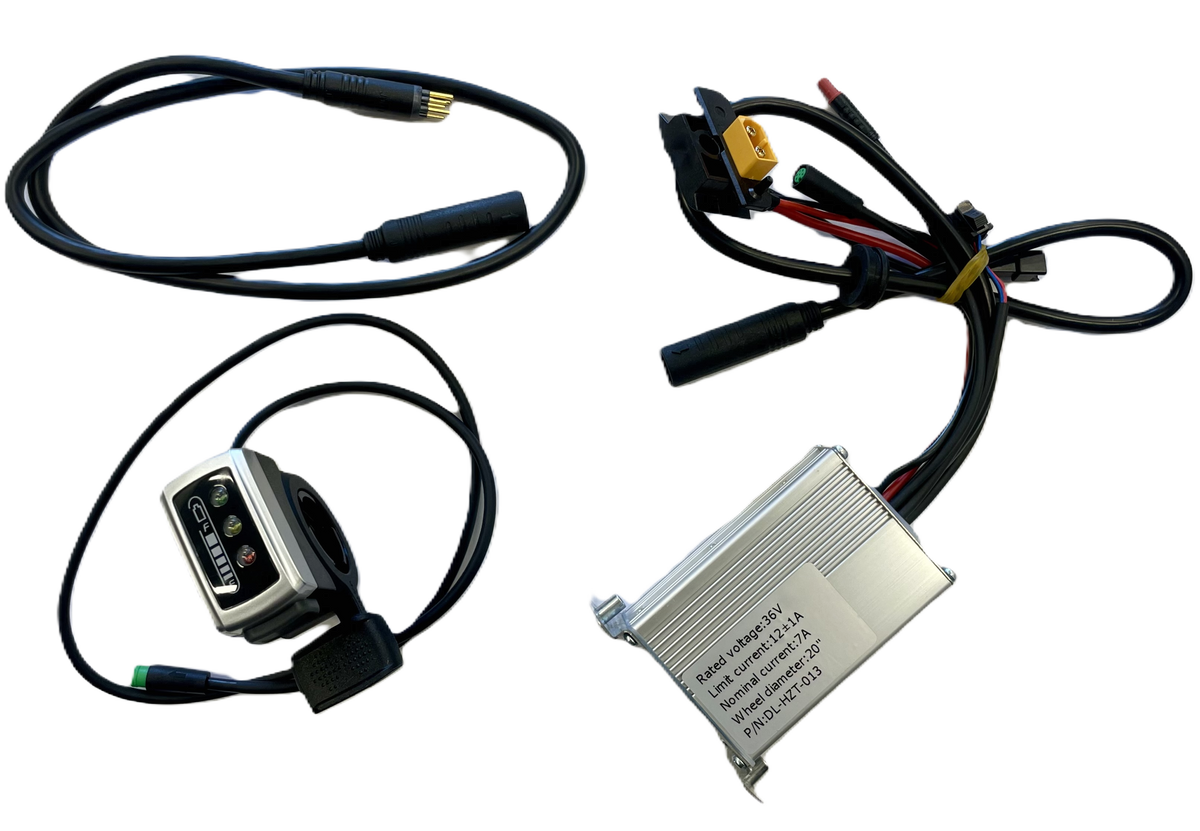

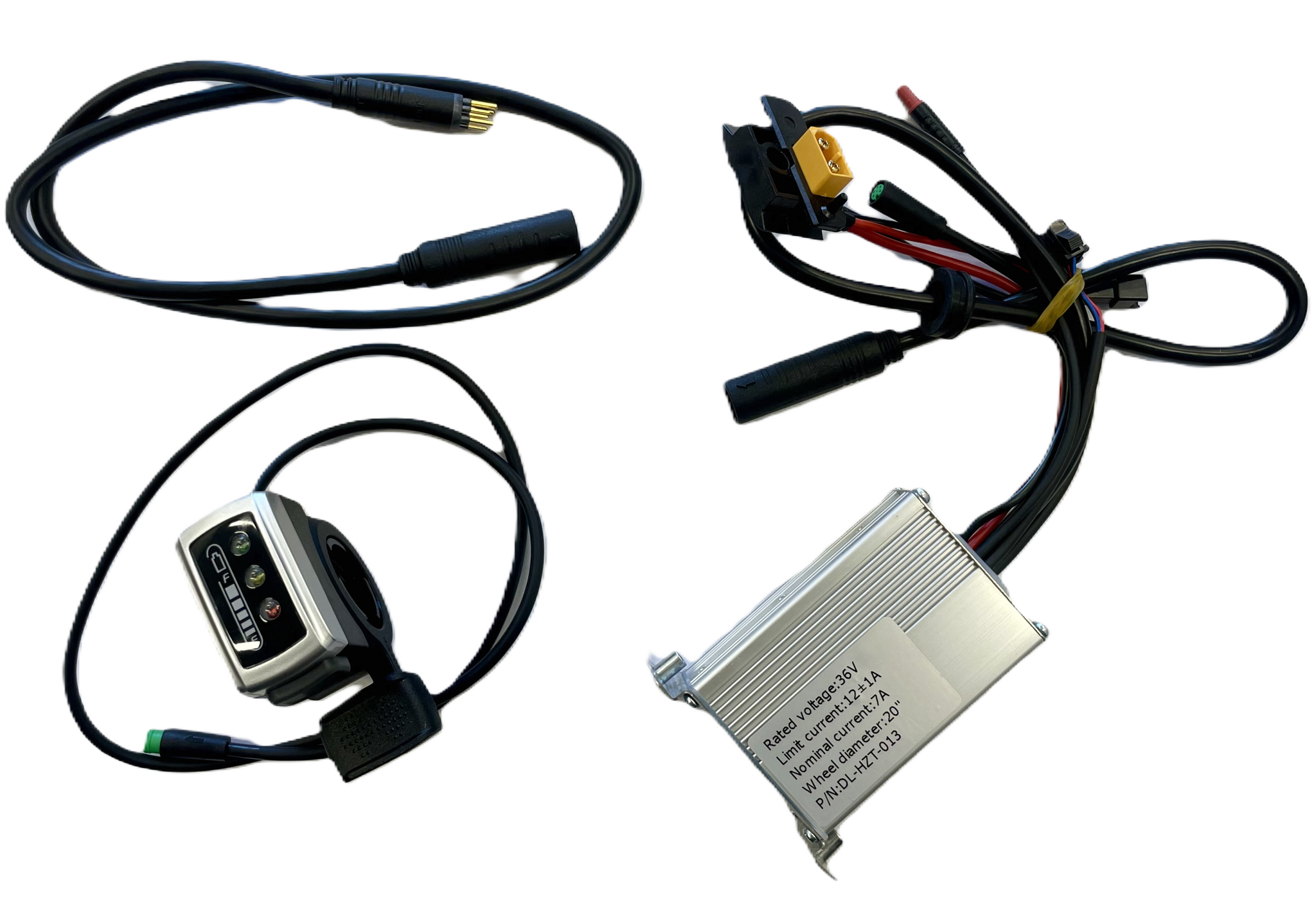

What's included (as pictured): motor controller with wiring harness, thumb throttle with battery level indicator, and connecting cable.
Controller specifications
| Rated voltage | 36V |
| Limit current | 12A ±1A |
| Nominal current | 7A |
| Wheel size | 20" |
Other JackRabbit controllers: OG 1.1 · OG2 · XG & OG2 Pro · XG Pro · MG series
Installation: Replacing a controller means disconnecting the battery and re-wiring the motor, throttle, and power connections inside the bike. A wrong connection can damage the new controller, so we strongly recommend professional installation. Our service team can diagnose the fault and install the kit in-house at our NYC showroom.
